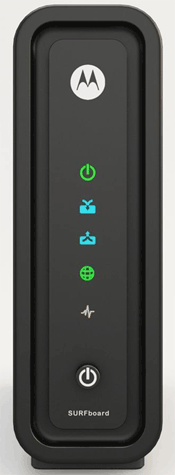

Motorola SB6121
Normal Status Lights

Light	STATUS	Description & Suggested Action
POWER	SOLID GREEN	Power is connected
	UNLIT	Power is not connected
RECEIVE	SOLID GREEN	Non-bonded downstream channel is connected
	SOLID BLUE	High-Speed Internet connection with bonded downstream channels
	FLASHING BLUE	Scanning for a downstream (Receive) channel connection
SEND	SOLID GREEN	Non-bonded upstream channel is connected
	SOLID BLUE	High-Speed Internet connection with bonded upstream channel
	FLASHING BLUE	Scanning for an upstream (Send) channel connection
ONLINE	SOLID GREEN	Startup process complete
	FLASHING GREEN	Scanning for an Internet connection
	UNLIT	No Internet connection available
LINK	SOLID AMBER	Connected to Ethernet (10Base-T) or Fast Ethernet (100Base-T) Port
	SOLID BLUE	High-Speed Gigabit Ethernet (1000Base-T) connection from the SB6121 to your PC
	FLASHING BLUE/AMBER	Transmitting or Receiving data on Ethernet Port
