VMware SD-WAN Edge 3X00

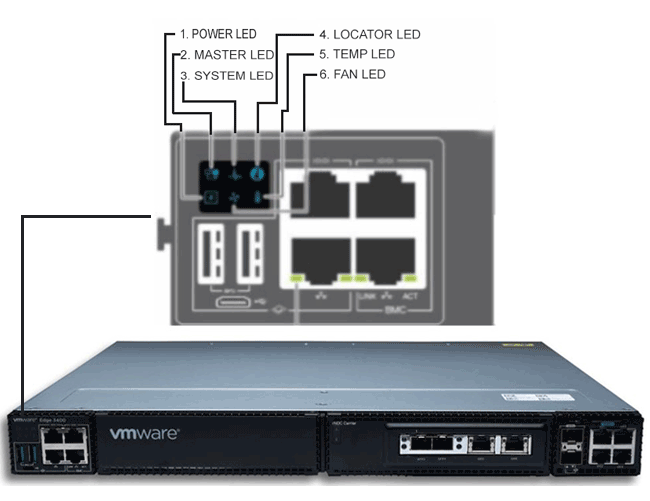

Normal Status Lights

Light	STATUS	Description & Suggested Action
POWER	UNLIT	System is off or in Standby mode
	SOLID GREEN	Normal operation
	SOLID YELLOW	POST is in process
	FLASHING YELLOW	Power supply failed
MASTER LED	SOLID GREEN	The system is in stand-alone mode
	UNLIT	System is in standby mode
SYSTEM LED	UNLIT	System is off or in Standby mode
	SOLID GREEN	Normal operation
	FLASHING GREEN	System is booting
	SOLID YELLOW	Critical system error, or the CPU is powered off
	FLASHING YELLOW	Non-critical system error, fan failure or power supply failure
LOCATOR LED	UNLIT	Locator function is disabled
	FLASHING BLUE (1 SECOND ON/OFF)	Locator function is enabled
	FLASHING BLUE (2 SECONDS ON/OFF)	System is in standby mode
TEMPREATURE LED	UNLIT	System is off or in Standby mode
	SOLID GREEN	Temerature is normal
	SOLID YELLOW	Temperature is at the limit
	FLASHING YELLOW	Temerature is over the limit
FAN LED	UNLIT	System is off or in Standby mode
	SOLID GREEN	Normal operation. Fan is powered and running at the expected RPM
	SOLID YELLOW	Fan failed
PSU LED	UNLIT	No power
	SOLID GREEN	Normal operation or standby mode
	SOLID YELLOW	A power supply critical event causing a shutdown
	FLASHING YELLOW	PSU warning event power continues to operate
