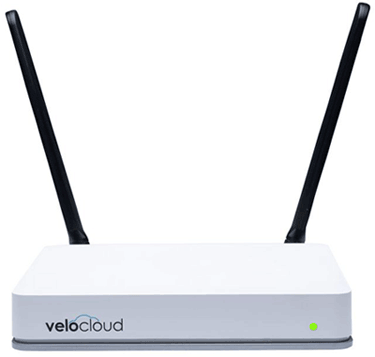

VMware SD-WAN Edge 510-LTE
Normal Status Lights

Light	STATUS	Description & Suggested Action
SERVICE INDICATOR	Red (Solid)	No active WAN connection
	Yellow (Solid)	There is an active Internet connection, but the Edge has not been activated
	Green (Solid)	The Edge has been activated
	Blue (Solid)	The Edge is a functioning standby in a High Availability configuration
	Blue (Flashing)	A system reset or software update is in progress
	White (Solid)	Initial power on and boot sequence
	White (Flashing)	Identifies a function invoked from the SD-WAN Orchestrator
