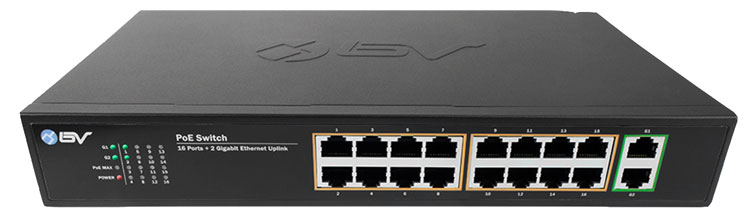

BV-Tech SW1602 POE Switch
Normal Status Lights

Light	STATUS	Description & Suggested Action
PWR	SOLID	The device is connected to the power supply properly
	UNLIT	The device is connected improperly or not connected to the power supply
LINK/ACT	SOLID	The corresponding port is connected properly
	FLASHING	The corresponding port is transmitting data
	UNLIT	The corresponding port is connected improperly or not connected
POE STATUS	SOLID	The corresponding port is connected with a PD (Powered Device) and powers the PD properly
	FLASHING	The PoE output of the corresponding port exceeds 30W
	UNLIT	The corresponding port is no PoE power output or no PD connected
POE-MAX	SOLID	The PoE power gets to the alarm value, and the available PoE power is less than 6W
	FLASHING	The PoE power gets to the maximum
	UNLIT	The PoE power works properly, and the available PoE power is more than 6W
G1/G2	SOLID	The corresponding port is connected
	FLASHING	The corresponding port is transmitting data
	UNLIT	The corresponding port is connected improperly or disconnected
G1-F/G2-F	SOLID	The corresponding port is connected properly
	UNLIT	The corresponding port is connected improperly or disconnected
