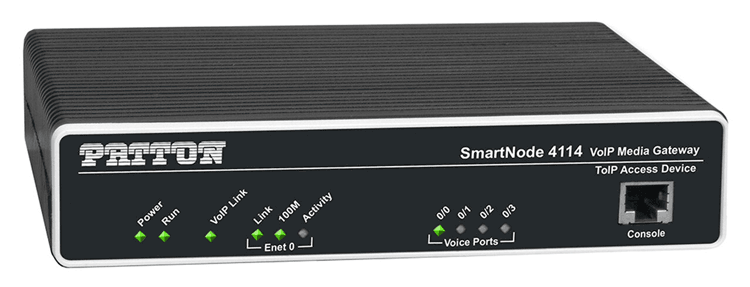

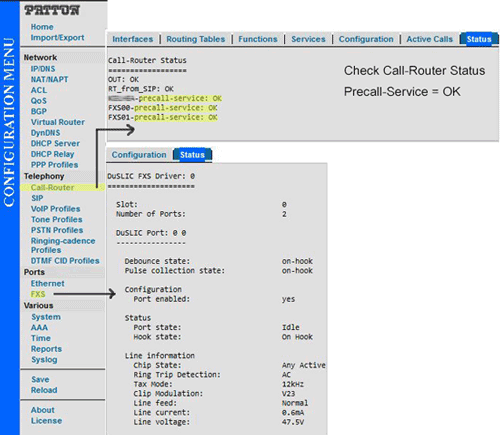

Patton SmartNode 4114
Normal Status Lights
Light |
STATUS |
Description & Suggested Action |
| POWER | Green (Solid) | When lit indicates power is applied. | Unlit | No power is applied. |
| VOIP LINK | Green (Solid) | When lit, indicates the Gateway is registered on a Gatekeeper, Media Gateway Controller, associated to a remote unit or has an active VoIP connection. | Green (Flashing) | Indicates that the unit is attempting or has failed to associate/register. | Unlit | Indicates the unit is not configured or registered and has no active VoIP connection. | Unlit (Normal) | IP Authenticated (non-registered) SIP Trunks do not light the VoIP Link light. |
| ENET 0 - LINK | Green (Solid) | Ethernet link is up. | Unlit | No Ethernet connection. |
| ENET 0 - 100M | Green (Solid) | Lit when 100 Mbps Ethernet is selected. | Unlit | When less than 100 Mbps or no Ethernet is selected. |
| ENET 0 - ACTIVITY | Green (Flashing) | Flashes when data is received or transmitted from the unit to the LAN. |
| VOICE PORTS 0/0 - 0/3 | Green (Solid) | Indicates off-hook condition. | Green (Flashing) | Flashes to follow ring cadence. | Unlit | Indicates on-hook condition. |
| RUN | Green (Solid) | When Lit, indicates normal operation. Flashes once per second during startup |
*Note: If an error occurs, all LED's will flash once per second.
| ||
