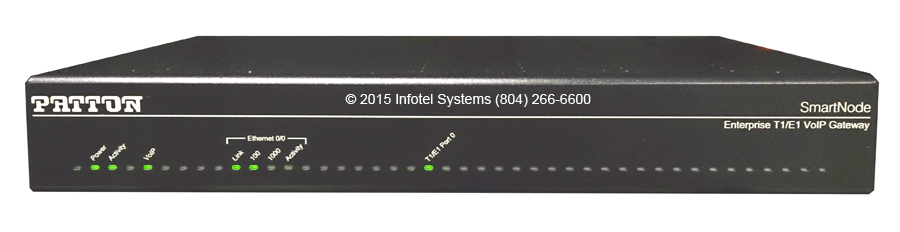

Patton SmartNode 4970 VoIP Gateway
Normal Status Lights
Light
|
STATUS
|
Description & Suggested Action
|
| POWER | Green (Solid) | When lit, indicates power is applied. |
Unlit | Indicates no power. | | ACTIVITY | Green (Solid) | When lit, the unit is in normal operation. |
Green (Flashing) | Flashes once per second during boot (startup). | | VOIP | Green (Solid) | Indicates the Gateway is registered to an H.323 Gatekeeper/SIP Server or in the case of direct routing, has at least one active VoIP connection. |
Green (Flashing) | Indicates that the unit is attempting to register or has failed to register. | Unlit | Indicates the unit is not configured or registered or has no active direct routed VoIP connection. | | ETHERNET LINK | Green (Solid) | On when the Ethernet connection on the corresponding port has a link indication. |
| ETHERNET 100 | Green (Solid) | When the Ethernet is connected to a 100MB network. |
Unlit | When the Ethernet is connected to a 10MB network. | | ETHERNET 1000 | Green (Solid) | When the Ethernet is connected to a 1000MB network. |
| ETHERNET ACTIVITY | Green (Flashing) | Flashes when data is received or transmitted at the corresponding Ethernet port. |
| T1/E1 PORT 0 | Green (Solid) | In Frame, no errors. |
Green (Flash) | Error | Green (Fast Flash) | Signal detected but no Frame synchronization or aquisition is in process. | Green (Slow Flash) | Framing synchronized, signaling not established. |
