Check Point Spark Firewall 1530

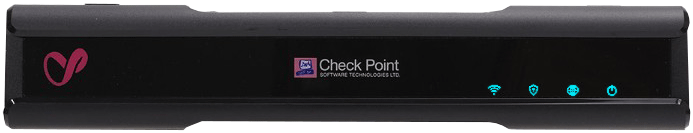

Normal Status Lights

Light	STATUS	Description & Suggested Action
WI-FI	Unlit	Wi-Fi is off
	Blue	Wi-Fi is on and operating normally
	Red	Wi-Fi error/alert
MANAGEMENT	Unlit	No management
	Slow Flashing Red	Zero Touch is running
	Rapid Flashing Red	Connected to Zero Touch Cloud Server and saved the deployment script
	Unlit	Zero Touch process is completed. SMP activation is not needed
	Slow Flashing Blue	Activation sleeping time
	Rapid Flashing Blue	Reactivation
	Blue	SMP is connected
	Unlit	SMP mode is off
	Red	Gateway failed to connect to the SMP and will exit from the retry script
INTERNET	Unlit	No Internet connection
	Flashing Blue	Trying to connect to the Internet
	Blue	Connected
	Flashing Red	Connection failure
POWER/STATUS	Blue	Normal operation
	Flashing Blue	Boot in progress and installing firmware. After the process completes the LED is solid blue
	Red	Error/Alert

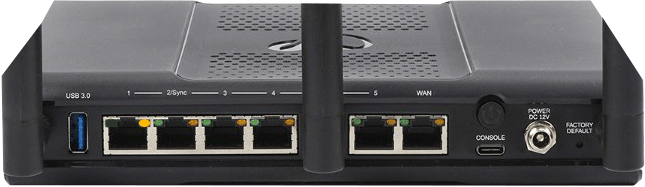

Light	STATUS	Description & Suggested Action
LED 1	Unlit	No Link
	Green	1G Link
	Flashing Green	1G Act
	Green	100M Link
	Flashing Green	100M Act
	Green	10M Link
	Flashing Green	10M Act
LED2	Unlit	No Link
	Unlit	1G Link
	Amber	1G Act
	Unlit	100M Link
	Unlit	100M Act
	Unlit	10M Link
	Unlit	10M Act
