HPE Networking Instant On Switch Series 1430 5G
Normal Status Lights
Light
|
STATUS
|
Description & Suggested Action
|

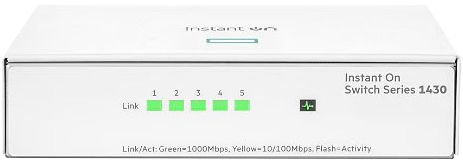

| GLOBAL STATUS | Solid Green | Receiving Power |
Unlit | Not receiving Power | | PORT | Solid Green | Activity at 1000 Mbps |
Flashing Green | Fast flash/flicker indicates successful link with activity | Solid Yellow | Activity at 10/100 Mbps | Flashing Yellow | Successful link with activity | Unlit | Port disabled, not connected or not receiving link beat |
Light
|
STATUS
|
Description & Suggested Action
|

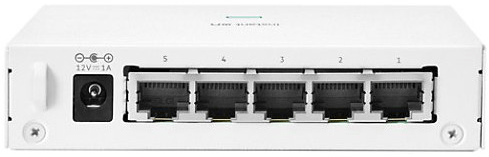

| STATUS | Port 1-5 | Check front LED's for activity |
