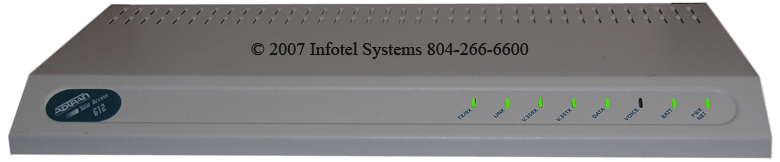

ADTRAN TA 612
Normal Status Lights
Light
|
STATUS
|
Description & Suggested Action
|
| TX/RX | Green (Blinking) | Indicates data flow on the Ethernet interface. |
| LINK | Green (Solid) | Ethernet connection. |
Unlit | No Ethernet connection. | | V.35 RX | | V.35rx & V.35tx are rarely used & are for the V.35 port on the back. |
| DATA | Red (Solid) | T1 is down. // Call your Carrier. |
| VOICE | Green (Solid) | Service okay. |
Blinking | Voice ports are in use. | Red (Solid) | Voice T1 is down. | | BATT | Green (Solid) | Backup battery okay. |
Unlit | If it has a battery & the BATT light is dark. // Contact your Carrier. | | PWR/NET | Blinking | T1 is down. |
Green (Solid) | Solid green if power is okay and T1 is up. | Unlit | Adtran has no power. |
