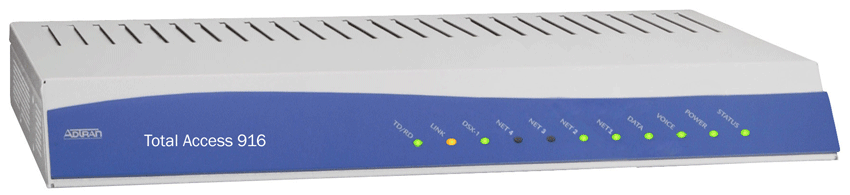

ADTRAN TA 916
Normal Status Lights

Light
STATUS
Description & Suggested Action
STATUSGreen (Flashing)On power-up blinks rapidly for 5 seconds.
Green (Solid)Power is on and the self-test completed successfully.
UnlitBootstrap Mode; the boot code cannot be booted.
POWERGreen (Solid)AC power is operational.
Amber (Solid)AC power has failed. Battery backup is active.
UnlitNo power.
VOICEGreen (Solid)At least (1) port is off-hook.
Green (Flashing)At least (1) port is ringing.
AmberAt least (1) port is in test.
Red (Solid)An FXS port has been shorted and is shut down. // (Customer side issue) Reboot unit.
UnlitAll ports are inactive.
DATAGreen (Solid)Layer 2 is up on the NET interface.
Red (Solid)Layer 2 is down on the NET interface.
UnlitLayer 2 interface is administratively shut down.
9XX Series NET/T1Green (Solid)Link is up and port is operational.
Red (Solid)Alarm Condition is occurring on the WAN Interface or there is a self-test failure.
UnlitThe interface is inactive or administratively shut down.
Amber (Solid)The unit is in a test state.
9XX "E Series" Network Facing *See Notes* NET/T1 1-2Green (Solid)Link is up and port is operational.
Red (Solid)Alarm Condition is occurring on the WAN Interface or there is a self-test failure.
Amber (Solid)The unit is in a test state.
UnlitNo NIM is installed or the interface inactive or administratively shut down.
9XX "E Series" Network or PRI & E&M *See Notes* NET / T1 3-4Green (Solid)Link is up and port is operational.
Red (Solid)Alarm Condition is occurring on the WAN Interface or there is a self-test failure.
Amber (Solid)The unit is in a test state.
UnlitNo NIM is installed or the interface inactive or administratively shut down.
9XX & 9XXe *See Notes* DSX-1Green (Solid)Link is up and port is operational.
Red (Solid)Alarm Condition is occurring on the WAN Interface or there is a self-test failure.
Amber (Solid)The unit is in a test state.
UnlitNo NIM is installed or the interface inactive or administratively shut down.
LINKGreen (Solid)10 Base-T link is up.
Amber (Solid)100 Base-T link is up.
UnlitLink is down or port is administratively shut down.
TD/RDGreen (Flashing)Data traffic is flowing.
UnlitNo traffic or port is administratively shut down.

*Notes*

The Adtran 9XX "E Series" (904e/908e/912e/916e/924e) have 4, T1 ports. These ports differ in that the first two are always network facing and the second two can either be network facing or can be used for PRI & E&M wink. Those could indicate a network problem if you have more than 3MB of service or they indicate a customer problem if you have less, as those are where your PBX would go. If a customer has 4.5MB and a PRI, they would be plugged into T1 0/4 more than likely, for example.

*Note that to use a PRI on ports 0/3 and 0/4, you must use a T1 crossover, swapping pairs 1+2 with 4+5.
