Technicolor TC8717T

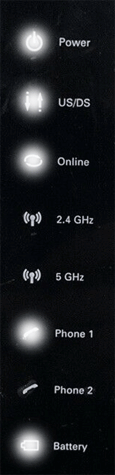

Normal Status Lights

Light	STATUS	Description & Suggested Action
POWER	SOLID WHITE	Powered ON
	FLASHING WHITE	Power failure or running on Battery
	UNLIT	Powered OFF
US/DS	SOLID WHITE	Upstream & Downstream Channel locked
	FLASHING WHITE	Locking Upstream or Downstream Channel
	UNLIT	Gateway is powered OFF
ONLINE	SOLID WHITE	Connected to your Service Providers Network
	FLASHING WHITE	Connecting to your Service Providers Network
	UNLIT	Not connected to the Service Providers Network
2.4GHz	SOLID WHITE	One or more Wireless Clients are connected
	FLASHING WHITE	One or more Wireless Clients are connected and data is being transmitted
	UNLIT	Disabled
5GHz	SOLID WHITE	One or more Wireless Clients are connected
	FLASHING WHITE	One or more Wireless Clients are connected and data is being transmitted
	UNLIT	Disabled
PHONE 1 & 2	SOLID WHITE	Phone connected to Port 1 or 2 is on-hook
	FLASHING WHITE	Phone connected to Port 1 or 2 is off-hook
	UNLIT	No phone connected to either Port
BATTERY	SOLID WHITE	Battery Level is OK or recharging
	FLASHING WHITE	Low Battery
	UNLIT	Bad Battery or no Battery installed

For more information or to have your device listed please contact Infotel Systems
