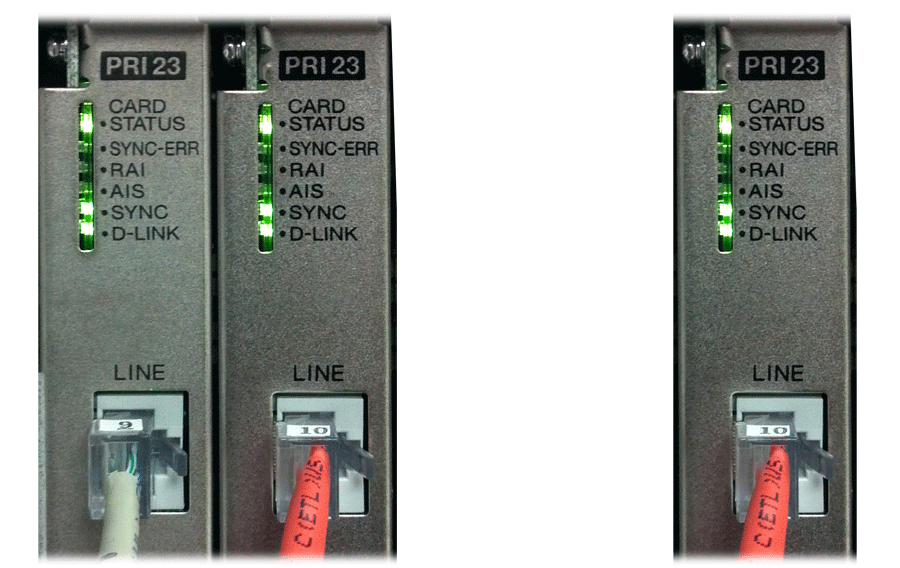

Panasonic TDE PRI Card
Normal Status Lights
Light
|
STATUS
|
Description & Suggested Action
|
| CARD STATUS | Green (Flashing) | Normal in use |
Green (Solid) | Normal idle | Red (Flashing) | Out of service | Red (Solid) | Fault or Reset | Unlit | Power off | | SYNC-ERR | Unlit | Normal |
Red | Out of Synchronization | | RAI | Unlit | Normal |
Red | Alarm (Clock Slave) | Red (Flashing) | Alarm (Clock Master) | | AIS | Unlit | Normal |
Red | Alarm | | SYNC | Green (Flashing) | Synchronized (Clock Master) |
Green | Synchronized | Unlit | Not Synchronized | | D-LINK | Green | Data Link Established |
Unlit | No Data Link Established |
