Comcast TP-Link TC-7620

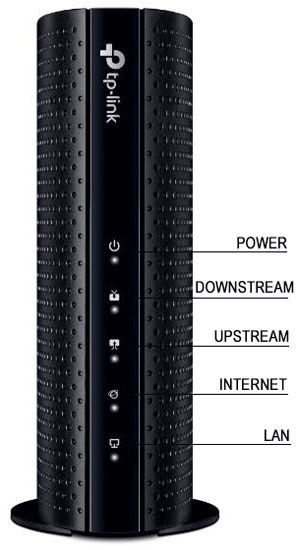

Normal Status Lights

Light	STATUS	Description & Suggested Action
POWER	SOLID WHITE	Powered ON
	UNLIT	Powered OFF
DOWNSTREAM	SOLID WHITE	Modem has synchronized with 1 channel
	SOLID GREEN	Modem has synchronized with more than 1 channel
	FLASHING WHITE	Scanning for downstream channels
	UNLIT	Synchronization has not started or has failed
UPSTREAM	SOLID WHITE	Modem has synchronized with 1 channel
	SOLID GREEN	Modem has synchronized with more than 1 channel
	FLASHING WHITE	Synchronizing upstream channels
	UNLIT	Synchronization has not started or has failed
INTERNET	SOLID WHITE	Internet service is available
	FLASHING WHITE	Modem is attempting to connect to the Internet
	UNLIT	No Internet service available
LAN	SOLID WHITE	LAN port is connected to a powered-on device
	FLASHING WHITE	LAN port is sending or receiving data
	UNLIT	LAN port is not connected to a device
