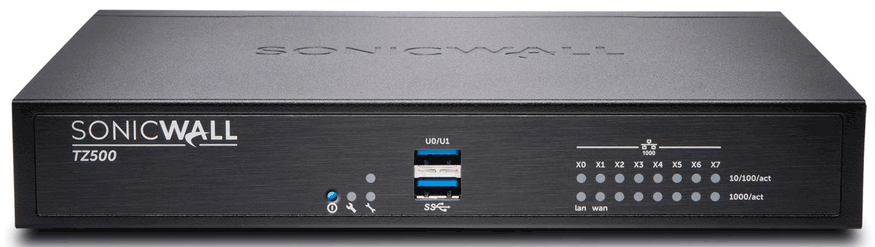

sonicwall TZ500
Normal Status Lights

Light
STATUS
Description & Suggested Action
POWERSOLID BLUEPower is on
YELLOWPower Supply not functioning properly
UNLITNo AC cable plugged in or ON/OFF switch on the back in set to 0
TEST/WRENCHSOLID YELLOWSystem Booting progress
YELLOW FLASHINGSystem in Safe Mode
YELLOW RAPID FLASHINGSystem is shutting down
UNLITNormal condition
ALARMFLASHING OR SOLID YELLOWMinor system Alarm
FLASHING OR SOLID REDMajor or critical system Alarm
UNLITNo Alarms present
10/100/1000 ACT X0 - X7SOLID GREENLinked at 10/100/1000 Mbps
YELLOW FLASHINGTraffic is active
Types of Alarms
MINOR ALARMFLASHING YELLOWActiveX Blocked
FLASHING YELLOWActiveX or Java archive access denied
FLASHING YELLOWCookie Removed
FLASHING YELLOWFragmented Packet Blocked
FLASHING YELLOWIP Spoof Detected
FLASHING YELLOWJava Blocked
FLASHING YELLOWLan Attack Dropped
FLASHING YELLOWNewsgroup Accessed
FLASHING YELLOWNewsgroup Blocked
FLASHING YELLOWPing of Death Blocked
FLASHING YELLOWProxy Access Blocked
FLASHING YELLOWSmurf Amplification Dropped
FLASHING YELLOWTCP SYN/FIN Packet Dropped
FLASHING YELLOWTCP Xmas Tree Packet Dropped
FLASHING YELLOWUnauthorized TCP Packet Denied
FLASHING YELLOWUnauthorized UDP Packet Denied
FLASHING YELLOWUnauthorized ICMP Packet Denied
FLASHING YELLOWWebsite Accessed
FLASHING YELLOWWebsite Blocked
MAJOR ALARMFLASHING REDTCP SYN/FIN/RST Flood in progress
FLASHING REDFailed Administrator login
