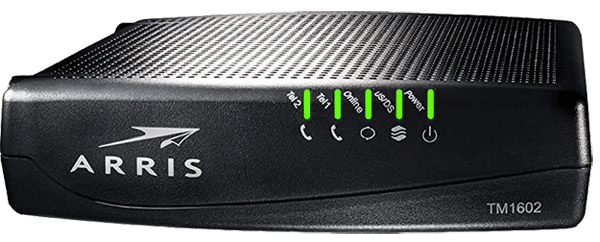

Arris Touchstone TM1602
Normal Status Lights

Light	STATUS	Description & Suggested Action
POWER	SOLID GREEN	Power is ON
	UNLIT	Power is OFF
US	SOLID GREEN	Connected to the Internet
	FLASHING GREEN	Not connected to the Internet
DS	SOLID GREEN	Connected to the Internet
	FLASHING GREEN	Not connected to the Internet
ONLINE	SOLID GREEN	Internet available
	UNLIT	Internet not available
TEL1/TEL2	SOLID GREEN	On-hook
	FLASHING GREEN	Off-hook
	UNLIT	Disabled
ETHERNET (Rear Panel)	SOLID GREEN	Computer with 1 Gbps port connected
	SOLID AMBER	Computer with 100/10 Mbps port connected
	FLASHING GREEN/AMBER	Computer activity
	UNLIT	Computer not connected
