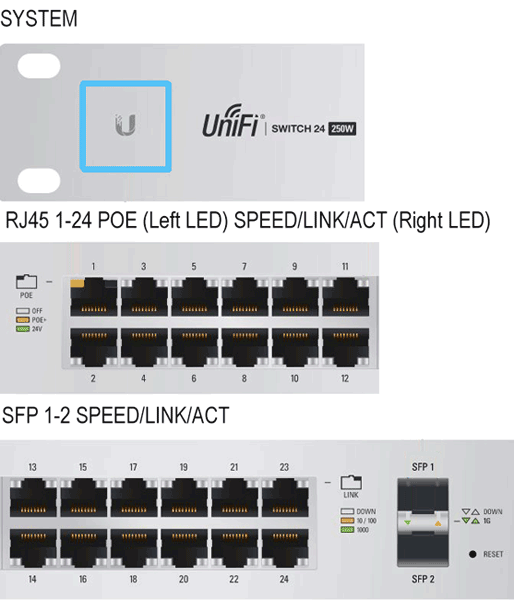

Ubiquiti USW-Pro-24-POE
Normal Status Lights
Light
|
STATUS
|
Description & Suggested Action
|
| SYSTEM | SOLID WHITE | Factory defaults, waiting for integration |
FLASHING WHITE | Initializing | ALTERNATING WHITE/BLUE | Device is busy; do not use or unplug it. This usually indicates that a process such as a Firmware upgrade is taking place | BLUE | Successfully integrated into a Network and working properly | FLASHING BLUE | Locating a Device. When you click Locate in the UniFi Controller software, the System LED will flash blue. The software will also display the location of the UniFi Switch on the map | | RJ45 1-24 POE (Left LED) | UNLIT | No PoE |
SOLID AMBER | IEEE 802.3af/802.3at | SOLID GREEN | 24V Passive | | RJ45 1-24 SPEED/LINK/ACT (Right LED) | UNLIT | No Link |
SOLID AMBER | Link established at 10/100 Mbps | FLASHING AMBER | Activity | SOLID GREEN | Link established at 1000 Mbps | FLASHING GREEN | Activity | | SFP 1-2 SPEED/LINK/ACT | UNLIT | No Link |
SOLID AMBER | Link established at 10/100 Mbps | FLASHING AMBER | Activity | SOLID GREEN | Link established at 1 Gbps | FLASHING GREEN | Activity |
