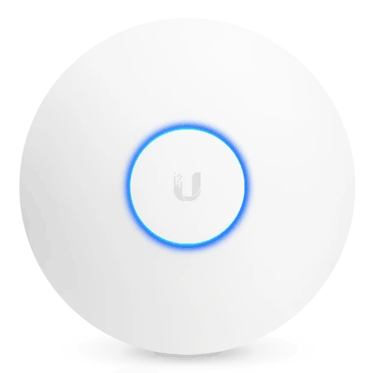

Ubiquiti UniFi UAP-AC-LR
Normal Status Lights

Light	STATUS	Description & Suggested Action
CENTER LED LIGHT	WHITE	Factory default, waiting to be integrated
	FLASHING WHITE/BLUE	Device is busy: Do not touch or unplug it. This usually indicates that a process such as a firmware upgrade is happening
	SOLID BLUE	The device has been successfully integrated into a network and is working properly
	FLASHING BLUE	Used to locate an AP.
	FLASHING BLUE	-When you click LOCATE in the UniFi controller software the LED on the AP will flash. It will also display the location of the AP on the map.
	SOLID BLUE/OCCASIONAL FLASHING	Indicates the device is in an isolated state (all WANs are brought down until an uplink is found)
