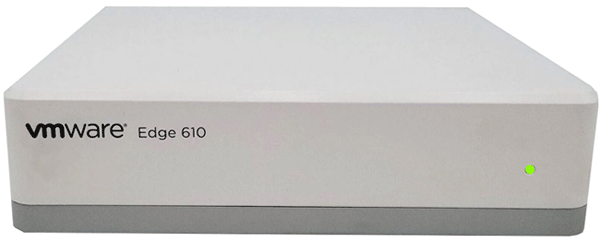

VMware VeloCloud Edge 610
Normal Status Lights
Light
|
STATUS
|
Description & Suggested Action
|
| SERVICE INDICATOR | Red (Solid) | No active WAN connection |
Red (Flashing) | Hardware failure detected | Yellow (Solid) | There is an active Internet connection, but the Edge has not been activated or the Vmware SD-WAN service is not active | Green (Solid) | A valid Internet connection and SD-WAN tunnel is detected (via one of the WAN ports) and the Edge is communicating with Vmware SD-WAN Orchestrator | Blue (Solid) | The Edge is a functioning standby in a High Availability configuration | Blue (Flashing) | A system reset or software update is in progress | White (Solid) | Initial power on and boot sequence | White (Flashing) | Identifies a function invoked from the SD-WAN Orchestrator |
