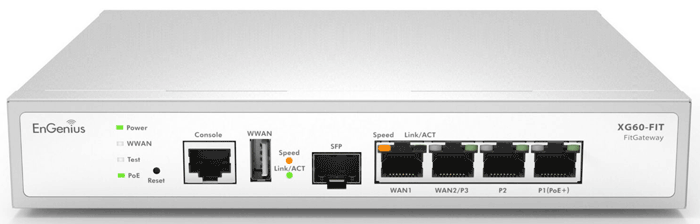

EnGenius XG60-FIT
Normal Status Lights

Light
STATUS
Description & Suggested Action
POWERORANGE FLASHINGPower ON
GREEN FLASHINGConnecting to the Cloud
GREEN SOLIDCloud Connected
GREEN/ORANGE FLASHINGFirmware upgrading
GREEN FLASHINGReset to Default by HW button (push for 10 seconds)
GREEN FLASHINGGateway locating
WWANORANGE FLASHINGReset to Default by HW button (push for 10 seconds)
ORANGE FLASHINGGateway locating
TESTBLUE FLASHINGReset to Default by HW button (push for 10 seconds)
BLUE FLASHINGGateway locating
PoEGREEN SOLIDProviding PoE Power
ETH LEFT (Link Speed)ORANGE SOLID1G Speed
GREEN SOLID100M Speed
UNLIT10M/No Link
RIGHT (Status)GREEN SOLIDLink Established
GREEN FLASHINGData transmitting
SPF LINK SPEEDORANGE SOLID1.25G Speed
GREEN SOLID100M Speed
UNLITNo Link
SPF LINK/ACTGREEN SOLIDLink Established
GREEN FLASHINGData transmitting
UNLITNo Link
