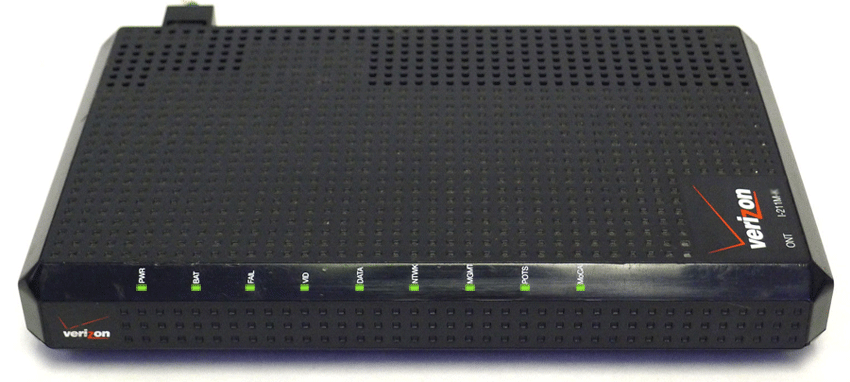

Verizon FIOS Alcatel-Lucent I-211M-L GIG ONT Normal Status Lights

Light
STATUS
Description & Suggested Action
PWRUNLITNot powered
SOLID GREENpower is available
BTRYUNLITBattery low or battery missing
SOLID GREENBattery good, charged and there is no battery alarm
FAILUNLITEquipment 100% operational
SOLID REDEquipment failure or not ranged, synchronized
VIDUNLITVideo signal above acceptable level or not provisioned
SOLID REDVideo signal below acceptable level
DATAUNLITNo link or data not provisioned
SOLID GREENLink active (Ethernet or MoCA)
NTWKUNLIT1490 nm data path is unavailable
SOLID GREEN1490 nm data path is available
MGMTUNLITNo communication between OLT/ONT
SOLID GREENFull communication between OLT/ONT
FLASHING GREENONT disabled
POTSUNLITAll customers on-hook
SOLID GREENAny customer is off-hook
FLASHING GREENIn SLID entry mode
MOCAUNLITNot provisioned or no link
SOLID GREENProvisioned and registered
FLASHING GREENData activity ( 1 second on, 1 second off)

Notes

(1) The VID LED is only functional for RF vidoe-equipped ONTs

(2) The MoCA LED is only functional for MoCA equipped ONTs

Light
STATUS
Description & Suggested Action

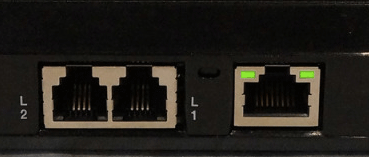

ACTIVITYUNLITNo TX/RX activity
FLASHING GREENTX/RX activity
DUPLEXUNLITHalf duplex
SOLID GREENFull duplex
FLASHING GREENCollision detected for half duplex
LINKUNLITNo link
SOLID GREENLink active
MODEUNLIT10 Mbps operation
YELLOW100 Mbps operation
